Heavy-Duty Warehouse Guard Rail Extension Unit

Description

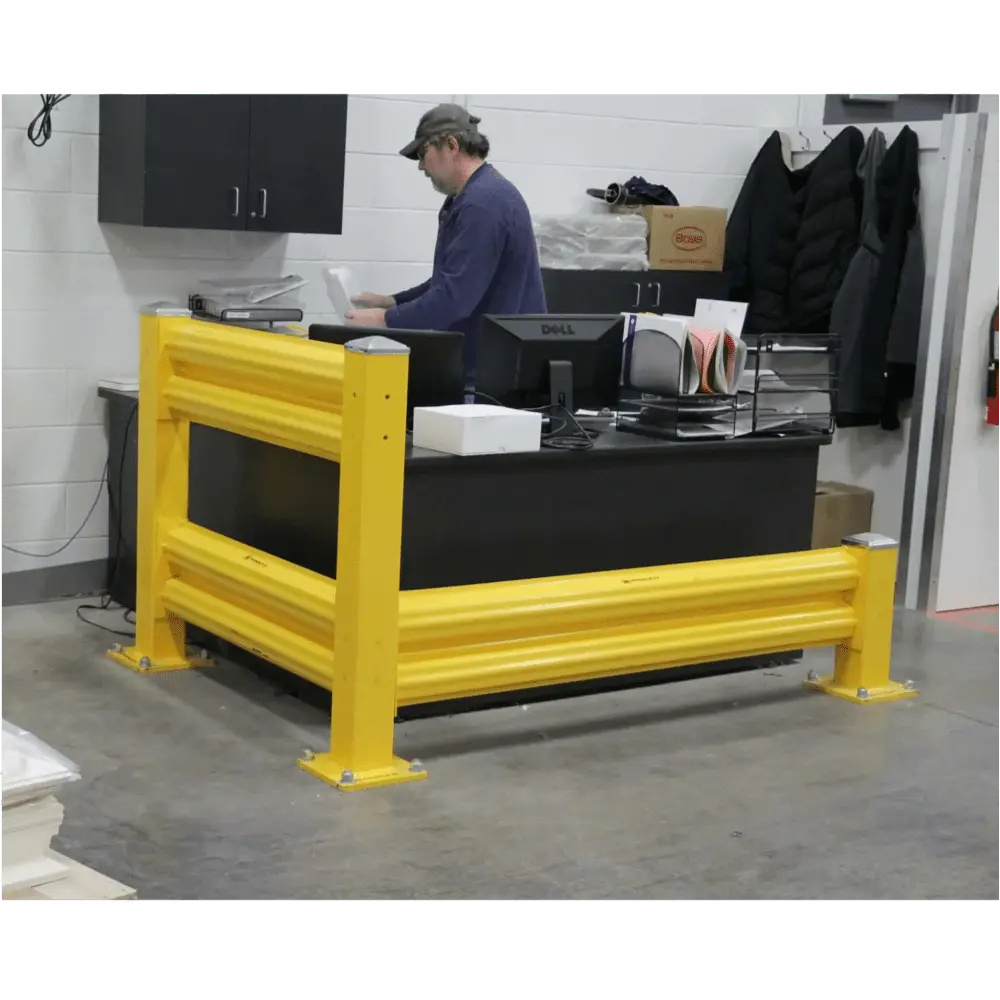

Handle-It Heavy Duty Warehouse Guard Rail Add-On Unit

Handle-It Heavy Duty Add-On Single Guard Rail Unit with one column. Used as Safety Barriers and Forklift Guardrails. Quick ship stock in Milwaukee, WI warehouse. Available in 2 – 10 ft. Long x 18.5″ Tall

*Ships out of WI

To create a line of guard rail start with a Starter Rail Unit, and then add as many Add-On Units as needed.

Lift Out Adapters are sold separately.

Adjustable Pedestrian Gates are sold separately.

Add On Kits Include

• (1) 18.5″ Tall single rail post
• (1) Heavy-duty rail (2′ – 10′ L)
• All hardware for install

Features and Benefits

• Tested to withstand 10,000 lbs. at 4 mph
• Powder-coated Handle-It yellow yields high visibility in a durable finish
• 2 Rails and 1 column as add-on units
• Column is 4.75″ x 4.75″ steel square tube mounted on a 10″ x 10″ base plate
• Product design allows for faster installation cutting down on labor costs
• Drilled & pre-tapped posts have mounting on all four sides
• Custom sizes available for your special projects
• All anchors and hardware/caps included
• In-stock items can ship within 24 hours.

Areas for Installation

• Around inplant offices and workstations
• Along pedestrian walkways
• To protect sensitive machines
• At the end of rack aisles
• Adjacent to conveyor lines
• Around mezzanines

(Click to enlarge)

Handle-It Guard Rail Dimensions
	Rail Length	Center to Center of Columns	Outside to Outside of Base Plates
10 Ft. Rail	115″	120″	130″
9 Ft. Rail	103″	108″	118″
8 Ft. Rail	91″	96″	106″
7 Ft. Rail	79″	84″	94″
6 Ft. Rail	67″	72″	82″
5 Ft. Rail	55″	60″	70″
4 Ft. Rail	43″	48″	58″
3 Ft. Rail	31″	36″	46″
2 Ft. Rail	19″	24″	34″

	Column Height
Single Rail Post	18.5″
Double Rail Post	43″

Model No.	GR-4-A1
Finish	Handle-It Yellow visibility powder coat
Miscellaneous	Custom sizes available
