Description

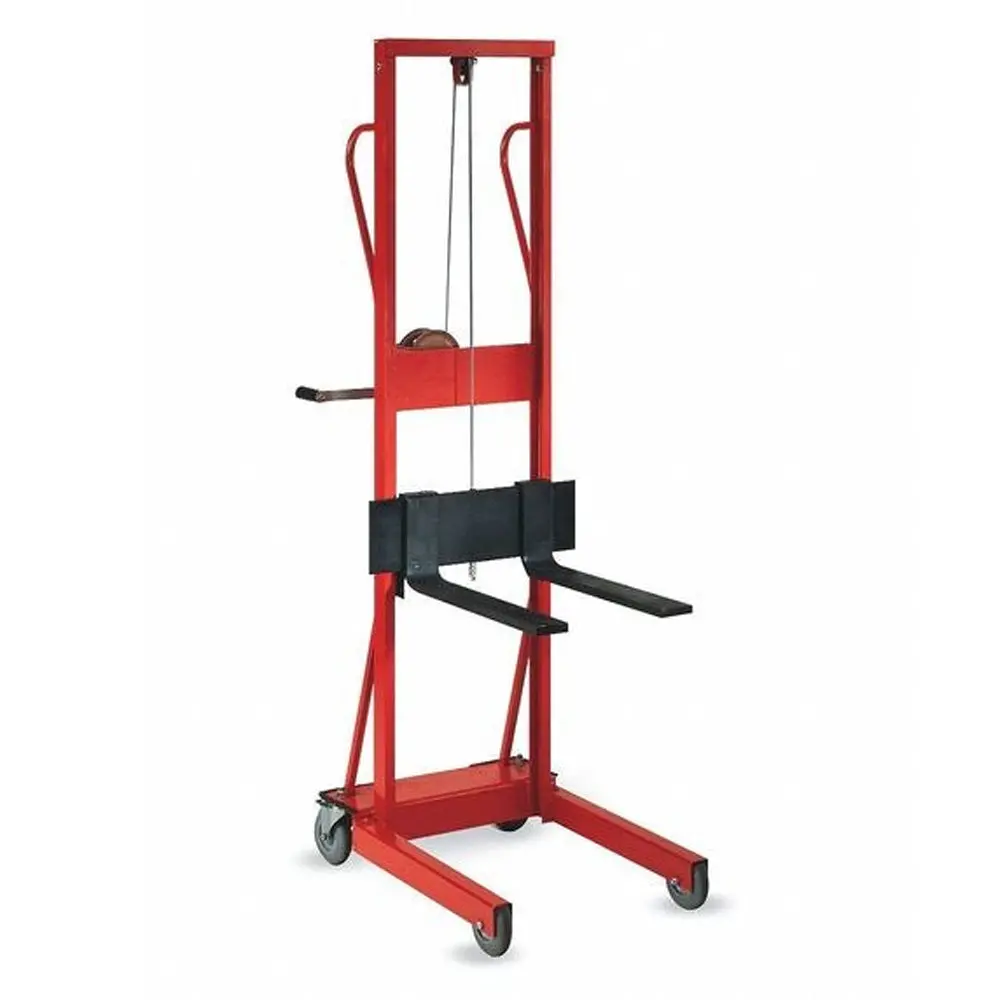

Winch Lite-Lift with Auto Brake and Locking Casters, 500 lb Capacity
The Winch Lite-Lift, available in models LLWP and LLWF, is a durable and reliable material handling solution featuring a manual winch with an auto-brake system. Designed for low maintenance and ease of use, this lift does not require catches to release. It includes casters with wheel locks for enhanced stability during operation.
The Winch Lite-Lift comes with a 1-year warranty and offers a maximum lift height of 54″. The platform and fork dimensions vary between models, providing flexibility to meet different lifting requirements. The LLWP model features a platform, while the LLWF model includes adjustable forks, making it suitable for various applications.
Specifications
| Specification | Part Number: 260152 | Part Number: 260153 |
|---|---|---|
| Model | LLWP | LLWF |
| Capacity | 500 lb | 500 lb |
| Lift Height | 54″ | 54″ |
| Platform Width | 20″ | N/A |
| Platform Length | 20″ | N/A |
| Width Forks | N/A | 3″ |
| Length Forks | N/A | 19″ |
| Load Center | 10″ | 10″ |
| Overall Width | 20″ | 20″ |
| Overall Height | 70.5″ | 70.5″ |
| Overall Depth | 30″ | 30″ |
| Weight | 103 lb | 124 lb |
| Caster | (4) 5″ | (4) 5″ |
| Lowered Height | 5.75″ | 4.25″ |
| Front Leg Span Outside Diameter | 20″ | 20″ |
| Front Leg Span Inside Diameter | 15.25″ | 15.25″ |
| Thickness Forks | N/A | 0.75″ |
