Mid-Length Hydraulic Side Link: 16.75″–20.69″

Description

Hydraulic Side Link with Two Forks

Part Number 11182

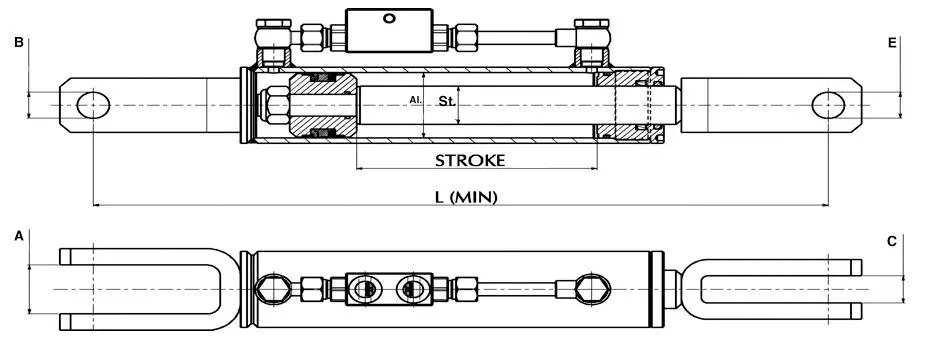

Pin hole (B): 7/8″
Pin hole (E): 7/8″
Internal fork width (A): 1 1/2″
Internal fork width (C): 7/8″
Min length (L): 16 3/4″
Max length: 20 11/16″
(Min and max lengths are taken from pin center to pin center)
Stroke: 3 15/16″
Cylinder bore: 2 3/8″
Rod diameter: 1 3/16″

Features:

Double-piloted check valve
Ports 3/8″ BSP (Includes BSP male to NPT male adapters)
Double-acting cylinder
High-quality chrome plated & polished rod
Honed & finished steel tube
Top quality seals
Pressure tested
1 year warranty
Standard color is graphite

Available hydraulic hose kits:

 – kit with 1/4″ valve type couplers – 36″ long  – kit with 1/2″ valve type couplers – 36″ long
– kit with 1/2″ ball type couplers – 36″ long  – kit with 1/2″ valve type couplers – 24″ long
– kit with 1/2″ ball type couplers – 24″ long
