Description

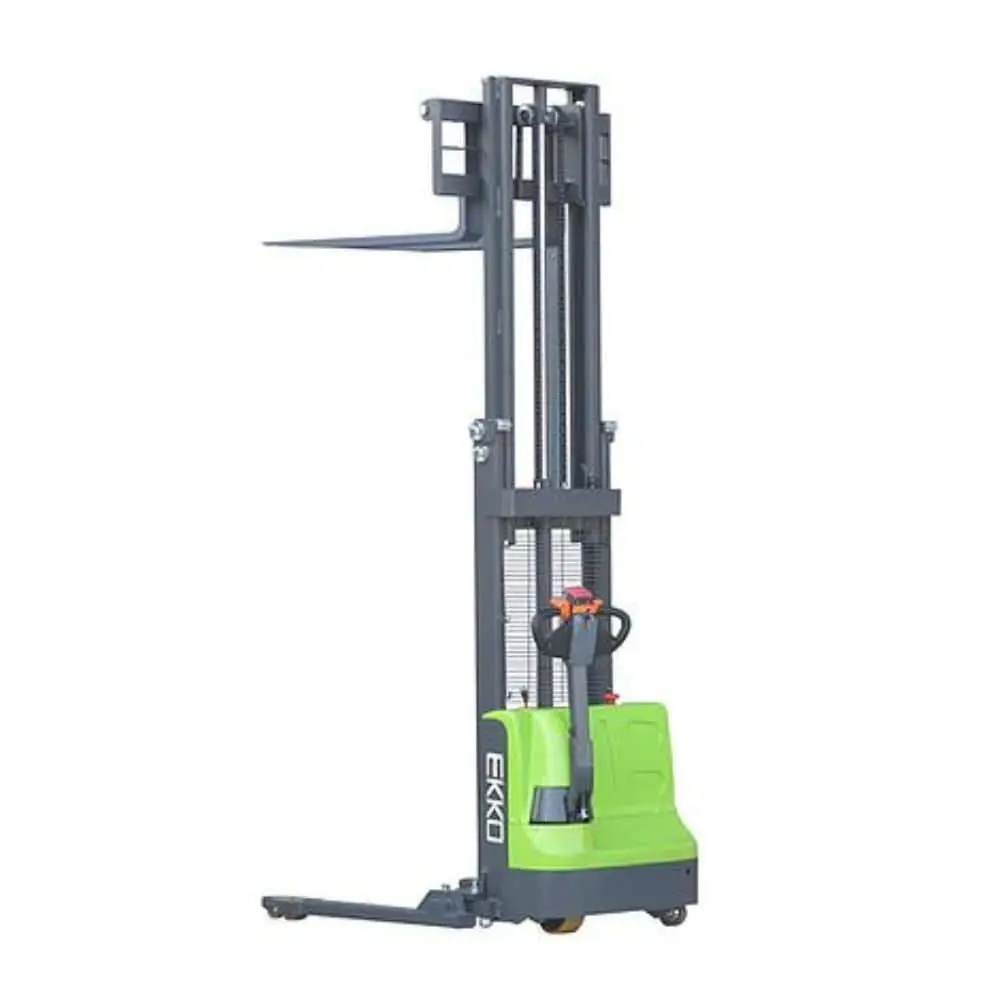

EKKO LIFTS Lithium Ion Phosphate Straddle Stacker
The EKKO EB12E-98Li Lithium Iron Phosphate Electric Straddle Stacker is a multifunctional and versatile material handling solution, blending the features of a forklift, reach truck and a walkie stacker. With a load capacity of 2640 lbs and a raised height of 98 inches, this straddle stacker is specifically designed to fit through doorways with its 72″ lowered mast height. Ideal for a range of applications, including loading docks, warehouses, and manufacturing floors, the EB12E-98Li is constructed from high-quality steel and components, ensuring durability and reliability.
Key Features:
- Versatile Load Capacity: Can handle up to 2640 lbs, suitable for diverse material handling tasks.
- Compact Design: 72″ lowered mast height allows for easy doorway access.
- Adjustable Forks and Legs: Offers flexibility for different pallet sizes.
- Lithium Iron Phosphate Battery: Equipped with a 24V/50Ah battery for efficient operation.
- Ergonomic Controls: Features an ergonomic handle and intuitive controls for ease of use.
- Polyurethane Wheels: Ensure smooth maneuverability and stability.
- Robust Construction: Steel is built with robotic welding for enhanced durability.
- Warranty: Comes with a 3-year limited warranty.
Specifications:
- Model: EB12E-98Li
- Service Weight: 1300 lbs
- Overall Length: 71 inches
EKKO EB12E-98Li Straddle Stacker: A perfect blend of power, versatility, and maneuverability, making it an ideal choice for efficient material handling in various industrial settings.
- Load Capacity 2640 lb
- Lowered Mast 72″
- Raised Height 98″
- Adjustable Forks 8.3-33.5″
- Adjustable Legs 45.7-59.1″
- Fork Length 45.3″
- Curtis Instrument Controller
- 24V Drive Motor
- 24V Lift Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3-Year Limited Warranty
| Model | EB12E-98Li | |
| Power unit | Walkie | |
| Operate type | Electric | |
| Load capacity | Q (LBS) | 2640 |
| Load Center | c (Inch) | 24 |
| Axle center to fork face | x (Inch) | 28 |
| Wheel Base | y (Inch) | 45.4 |
| Service weight | LBS | 1300 |
| Tyres | Polyurethane wheels | |
| Front wheel size,number | w(Inch) | 3.1×2.7 ,4 |
| Rear wheel size ,number | w(Inch) | 8.3*2.7,1 |
| Balance wheel size,number | w(Inch) | 6*2.3 1 |
| Lowered mast height | h1 (Inch) | 72.05 |
| the max Lift height | h3 (Inch) | 98.42 |
| Extended mast height | h4 (Inch) | 119.96 |
| Operating handle height at drive position (min/Max | h14 (Inch) | 34.25/47.24 |
| Lower fork height | h13 (Inch) | 2.56 |
| Overall Length | l1 (Inch) | 71 |
| Length to Fork face | l2 (Inch) | 23.82 |
| Fork Dimension: | s/e/l (Inch) | 1.38/3.94/45.28 |
| Outside width betwween two fork | b5 (Inch) | 8.27-33.47 |
| Min ground clearance | m2 (Inch) | 0.95 |
| Turning radius | Wa (Inch) | 52.6 |
| Travel speed, laden/unladen | km/h | 4.0/4.2 |
| Lift speed, laden/unladen | m/s | 92/136 |
| Lowering speed. Laden/unladen | m/s | 112/98 |
| Maximum climbing ability Laden/unladen | % | 6/8 |
| Service brake | Electromagnetic | |
| Life motor | kw | 2.2 |
| Driving motor | kw | 0.75 |
| Steering motor | kw | / |
| Battery according to Din 43531/35/36 a,b,c | no | |
| Battery voltage, nominal capacity | v/ah | 24 V/50AH |
| battery weight | LBS | 29 |
| Type of control | DC | |
| Noise level at operator’s ear | 69 | |
| Steering type | Mechanical |
