Description

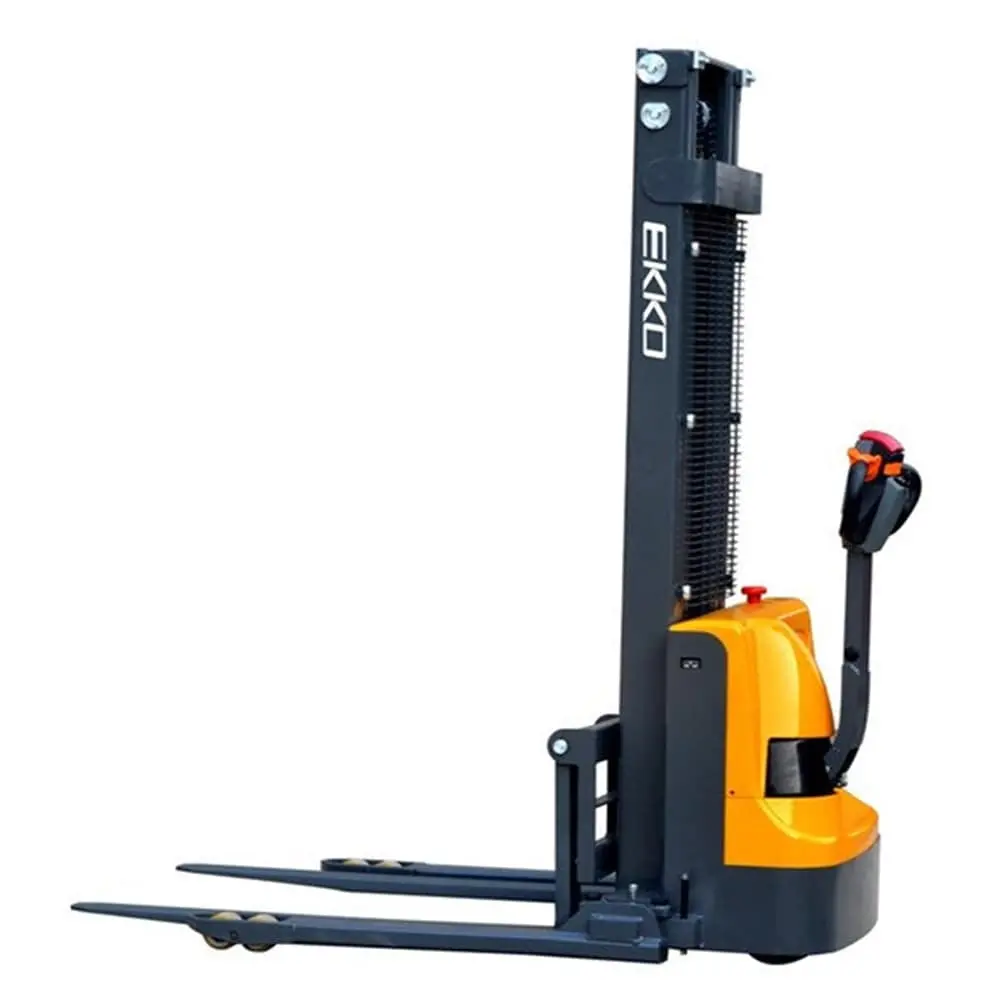

EKKO EB12E Electric Straddle Stacker – 119-138″ Height
The EKKO EB12E Electric Straddle Stacker is a highly versatile material handling solution, integrating the functionalities of a forklift, reach truck, and walkie stacker. It is perfectly suited for tasks such as loading and unloading trucks, working in stock rooms, and operating on manufacturing floors and in warehouses. With a load capacity of 2,640 lbs and a maximum lifting height of 119 or 138 inches, this stacker is built from high-quality steel and components, ensuring durability and reliability in diverse working conditions.
Key Features:
- Versatile Load Capacity: Handles loads up to 2,640 lbs.
- High Lift Height: Reaches up to 119 or 138 inches for efficient stacking and retrieval.
- Adjustable Forks and Legs: Offers flexibility for different pallet sizes.
- Efficient Power System: Equipped with a Curtis controller, 24V drive motor, and lift motor.
- Built-In Battery and Charger: Includes 2-12V/100Ah batteries and an internal 24V/15A charger.
- Ergonomic Design: Features an ergonomic handle and controls for comfortable operation.
- Durable Construction: Steel is built with robotic welding for enhanced strength and stability.
- Warranty: Comes with a 3-year limited warranty.
Specifications:
- Model: EB12E
- Turning Radius: 52.6 inches
- Service Weight: 1,420 lbs
EKKO EB12E Electric Straddle Stacker: A powerful and efficient choice for businesses seeking a multifunctional and robust material handling tool.
- Load Capacity 2640 lbs.
- Raised Height 119.4″ (9.95ft)
- Adjustable Forks 8.3-33.5″
- Adjustable Legs 45.7-59.1″
- Fork Length 45.3″
- Curtis Controller
- 24V Drive Motor
- 24V Lift Motor
- Internal Charger
- Battery 2*12V/100Ah Included
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- 3 Years Limited Warranty
|
Model |
|
EB12E |
|
Load Capacity |
(lbs) |
2640 |
|
The max. lifting height |
(in) |
119 or 138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
135 |
|
Lowered mast height |
(in) |
82 |
|
Battery voltage (dimensions) |
(in) |
2-12V/100AH(10/6.6/8.5) |
|
Internal charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
|
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lbs) |
1420 |
